LOADLITE™
Arched Aluminum Loading Ramps

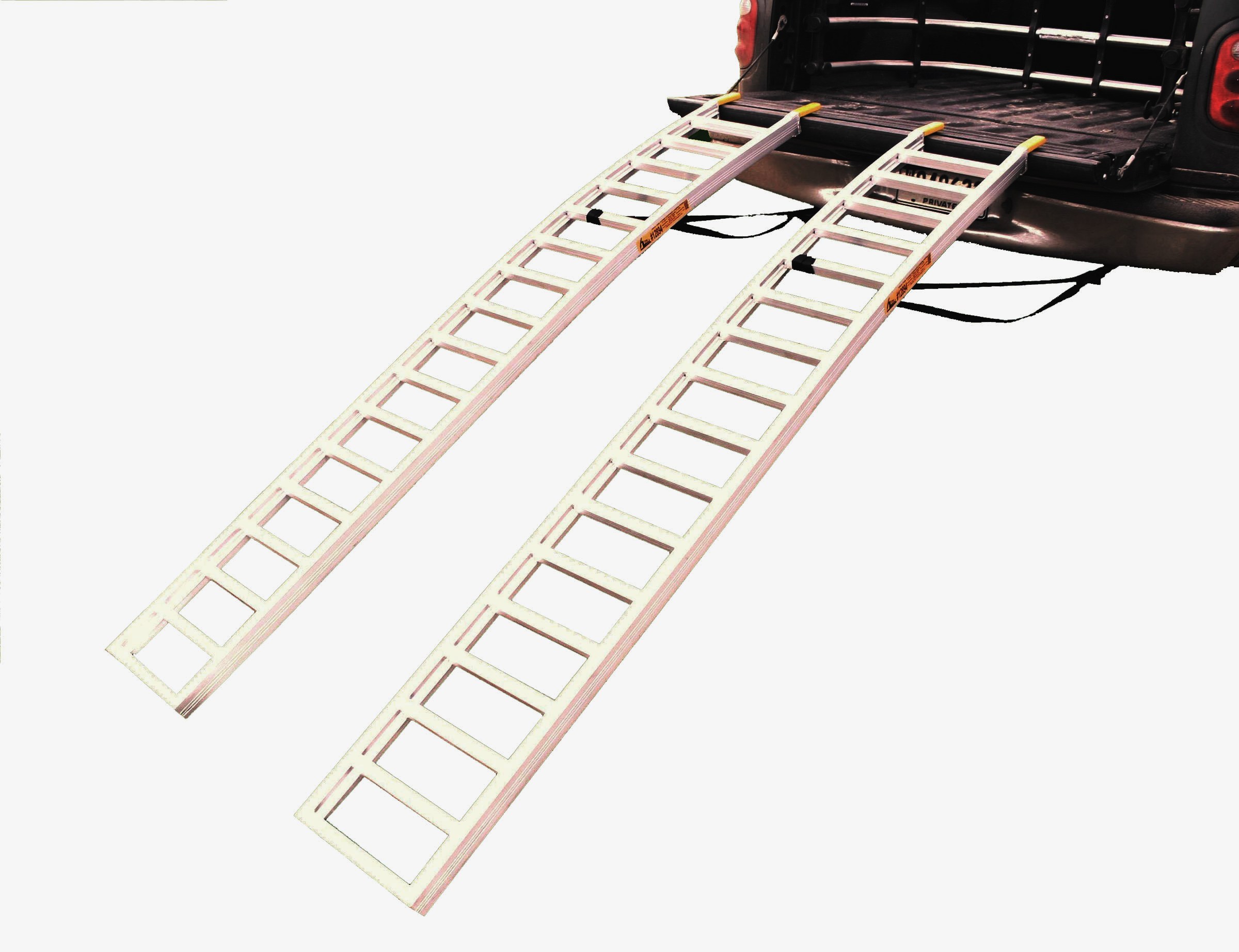

The Max Arch Model # LL12894
Some ATV’s, utility vehicles, and lawn-
mowers call for a low deck clearance.
The Max Arch features an arched design that makes it possible to load lawnmowers and low clearance ATV’s with ease. The two panels together provide an unbelievable 1500 lbs. of holding power.
Size:
- 12″ x 89″
- Stacked Thickness: 4.25″
- Rungs/Panel: 17
- Rung Length: 10″
- Rung Spacing: 4″
Weight: 23 lbs.
Capacity:
- 750 lbs. / panel
- 1500 lbs. pair
Shipping:
- 13″ x 89″ x 7.25″
- 26 lbs
- 20 / pallet

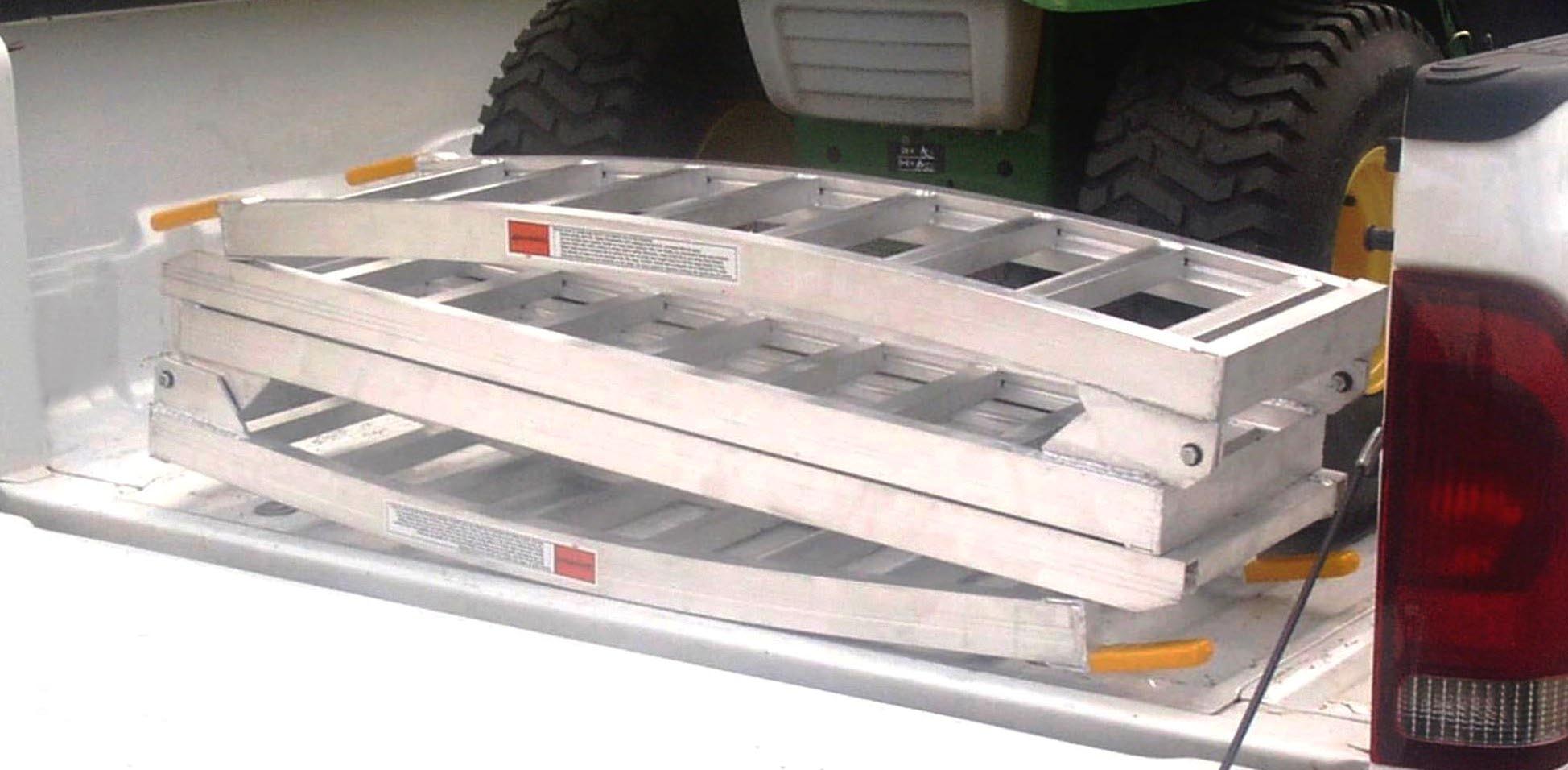

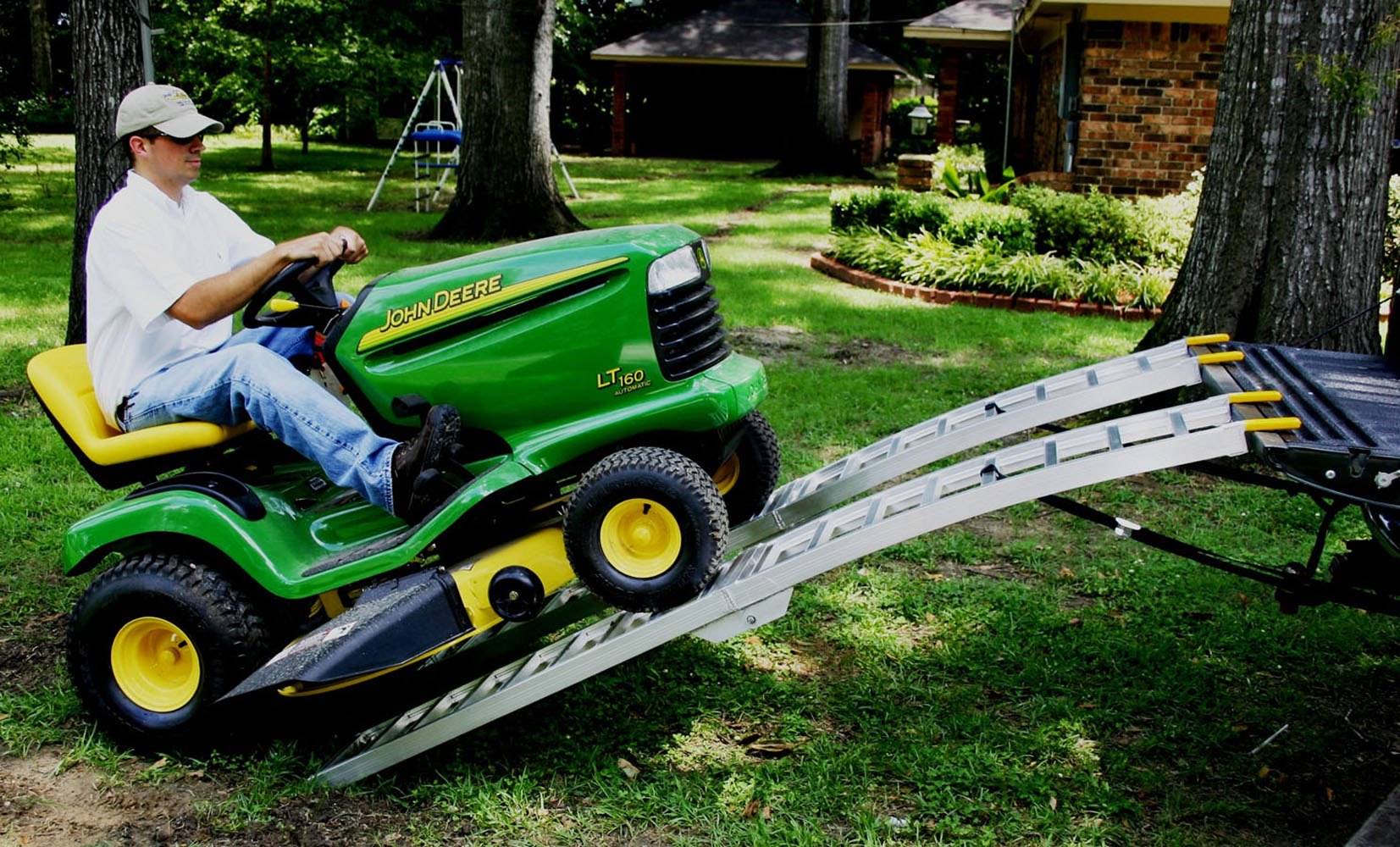

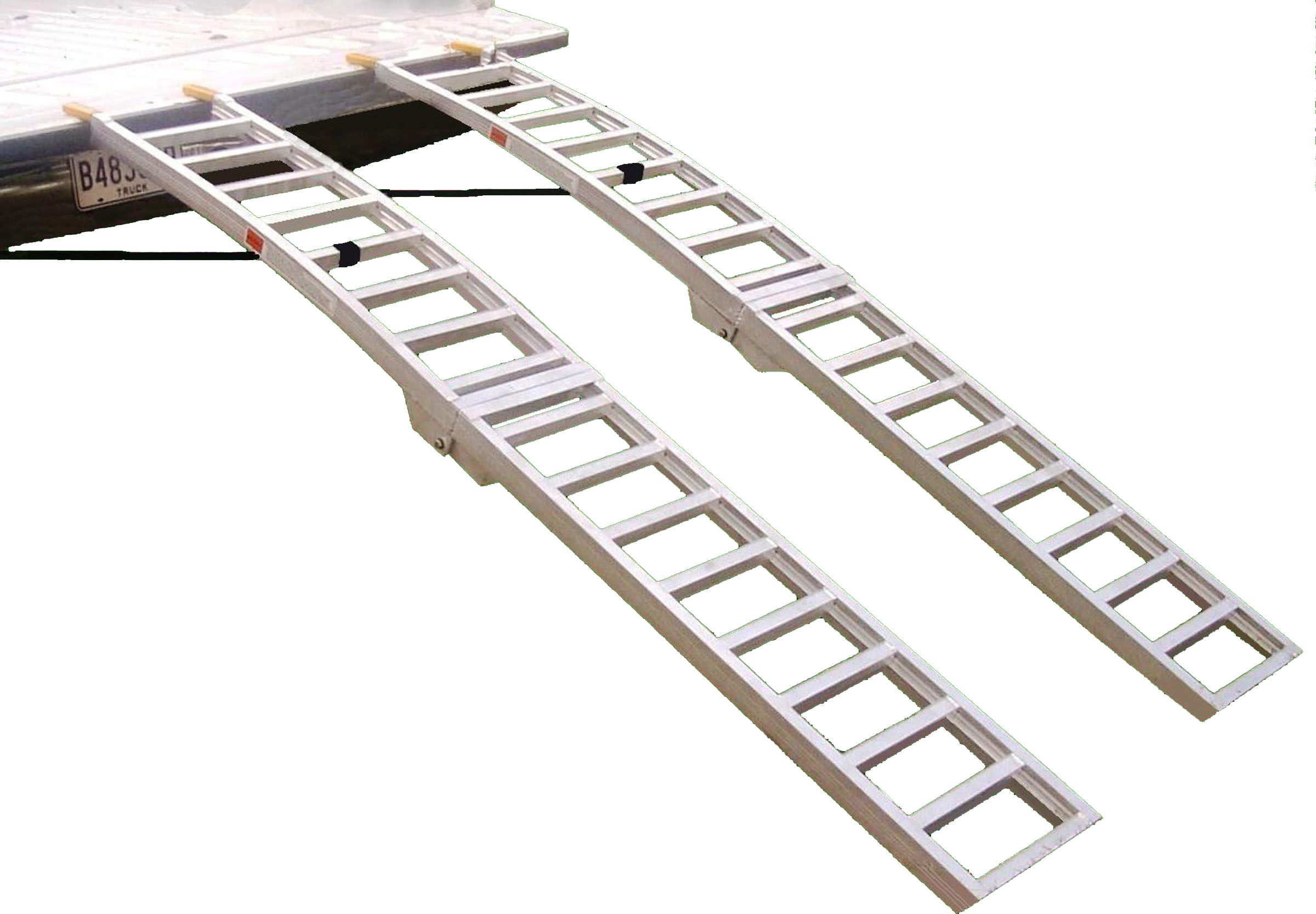

Max Arch Folder All Purpose Loading Ramp Model # LL12894F
Here’s the ultimate set of ramps for both performance and convenience. The arched design will take care of low clearance needs – the folding feature provides storage in the smallest space of any loading ramp on the market.
Size:
- 12″ x 89″
- Stacked Thickness: 13″
- Rungs/Panel: 17
- Rung Length: 10″
- Rung Spacing: 4″
Weight: 30 lbs.
Capacity:
- 750 lbs. / panel
- 1500 lbs. pair
Shipping:
- 12″ x 13″ x 52″
- 30 lbs
- 20 / pallet
Load-Lite Loading Ramp Finger Replacement Covers
Lost Finger covers? Don’t run the risk of scratching or damaging the tailgate of your vehicle with bare loading ramp fingers. More importantly, don’t risk using a ramp that is missing the extra grip provided by finger covers. cover bare ramp fingers with Great Day’s set of four original equipment replacement covers.
