LoadLite™ Aluminum Loading Ramps

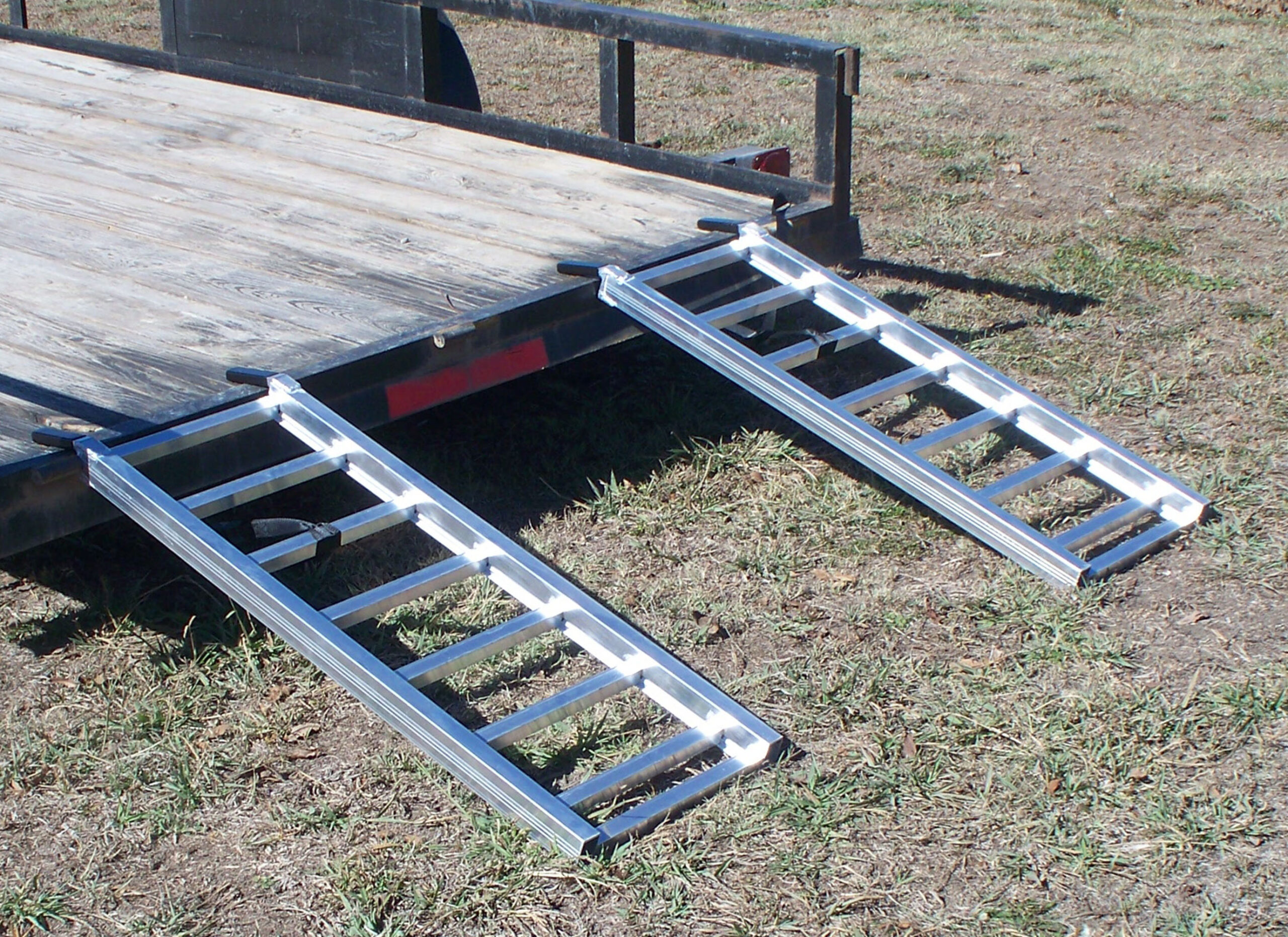

ATV/UTV Trailer Ramp Model LL16445

When it comes to loading an ATV or UTV onto a trailer, the main concern is to do it safely and efficiently. Great Day’s new Trailer Ramp is the best means and the best value ever in a loading ramp. The LL16445 is constructed of 100% aircraft aluminum and; combined, its two 16” x 44” panels deliver a loading capacity of 2000 lbs.—enough to handle the heaviest ATV’s and UTV’s!

The Trailer Ramp features 5 inch rung spacing and includes gripping ridges on the rungs to insure non-slip loading. It also includes plastic-coated fingers and security straps that provide positive attachment to the trailer.

The Trailer Ramp weighs only 15 lbs and ships by UPS.

Made with Pride in the USA!

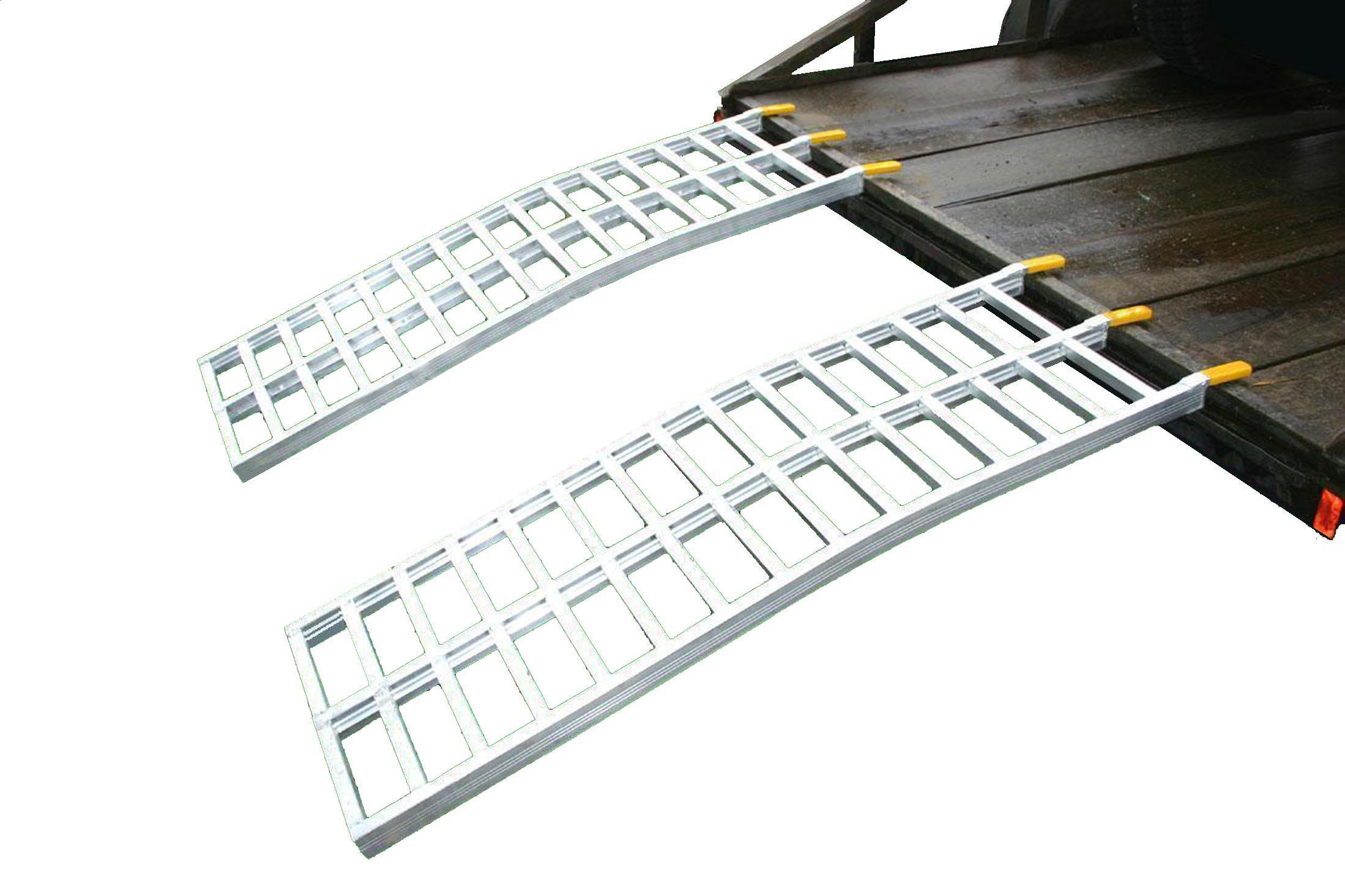

Load-Lite UTV Loading Ramp Model #LL21643

The weight of most UTV’s require a loading ramp with a lot of holding power. UTV ramp has to hold a lot of weight and provide a good flooring design and loading space.

The UTV ramp handles loading and unloading utility vehicles safely and effectively. The LL21643 is rated at a whopping 3600 lbs. total capacity. The loading panels on this ramp are 20 ¼” wide and are designed especially for the unique loading requirements of utility vehicles. Triple structure gives it the strength to handle the toughest jobs.


  • 21” x 64” (2 panels)
  • Rungs/Panel: 30
  • Rung length: 8 5/8”
  • Rung spacing: 3”

Weight: 29 lbs.

Capacity: 3600 lbs / pair


  • 65” x 22” x 8”
  • 32 lbs.
