UTILITY RACK UTV

Utility Rack UTV

(UNIVERSAL RACK THAT REPLACES THE EARLIER MODELS UVUR1 THRU UVUR7)

UTV UTILITY RACK
REAR UTILITY RACK MULTI-FIT
MODEL # UVUR10-MF

Great Day’s UTV Utility Rack adds an extra dimension of usefulness to a side-by-side, off-road vehicle. The Utility Rack mounts to the UTV bed and provides an extension of the UTV’s cab frame—providing the perfect place to transport bulky, but light-weight equipment or materials.

The UVUR10-MF Rear Utility Rack for a UTV adjusts to fit the bed and cab height of Utility Vehicles universally. With its clever telescoping frame, installation is a snap. The Utility Rack expands to fit the UTV bed from 29 inches to 45 inches front to back, 41 inches to 59 inches side-to-side and up to 36 inches high. The unit includes a 50 inch front extension that provides support when transporting longer items on the top side. Good examples of long items topside are: ladders, Emergency Responder Boards, kayaks, Canoes, boards, frames, tubing, etc.

The UVUR10-MF Rear Utility Rack is constructed of 1 ½ inch, super-strong, but light-weight aircraft aluminum.  It can be assembled in just minutes with regular hand tools and installs easily to the bed rails of the UTV. Comes complete with two guide-rail posts with eye-bolt tie-downs mounted at the top of the rear frame and also includes two cinching straps.Maximum load capacity is 100 lbs. Product assembled dimensions: Up to 36” h x 29”-45” d x 41”-59”; with the front extension: 50” d

The Utility Rack is not attached to the frame of the UTV cab; therefore, the bed tilt mechanism is functional when there is no load on the Utility Rack.

NOTE: THIS RACK, THE UVUR10-MF REAR UTILITY RACK MULTI-FIT, IS A UNIVERSAL RACK THAT REPLACES THE EARLIER MODELS UVUR1-UVUR7
THE IMPLEMENT HOLDERS KIT – MODEL #TTIH402 IS SOLD SEPARATELY AS AN ADD-ON FEATURE TO THE UVUR10 MF.  THE IMPLEMENT HOLDERS CAN BE ADDED TO HOLD AN ADDITIONAL ITEM ON THE SIDE OF THE UTV UTILITY RACK AS SEEN IN THE PHOTO WITH THE SHOVEL AND HOE.  EACH KIT INCLUDES TWO HOLDERS AND CAN BE ATTACHED TO THE SIDES OF THE UVUR10MF.  SO FOR ONE TOOL YOU WILL NEED ONE KIT.  OTHER POPULAR HOLDS INCLUDE WEEDEATERS, TRIMMERS, AND OTHER MUNICIPAL LANDSCAPING SUPPLIES.
WARNING—Never exceed the stated weight limit when using this product.

WARNING—Never allow a person to climb or ride on the Utility Rack.

WARNING—Always be sure any equipment, materials or load of any kind are totally secured before transporting

NOTE: Modification and/or drilling to the vehicle may be necessary for installation.

Made with pride in the USA!

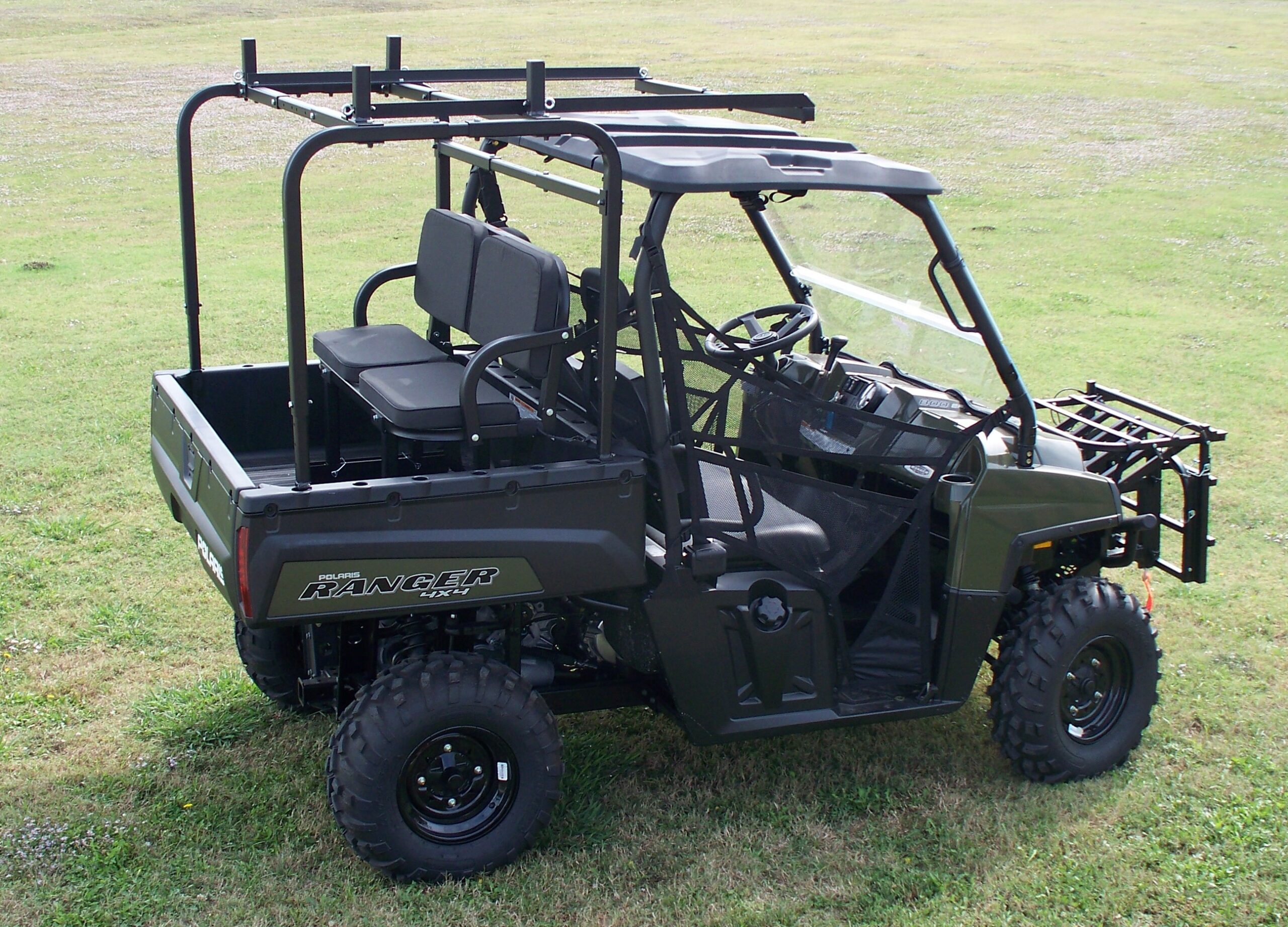

UVUR10-MF and the optional TTIH402

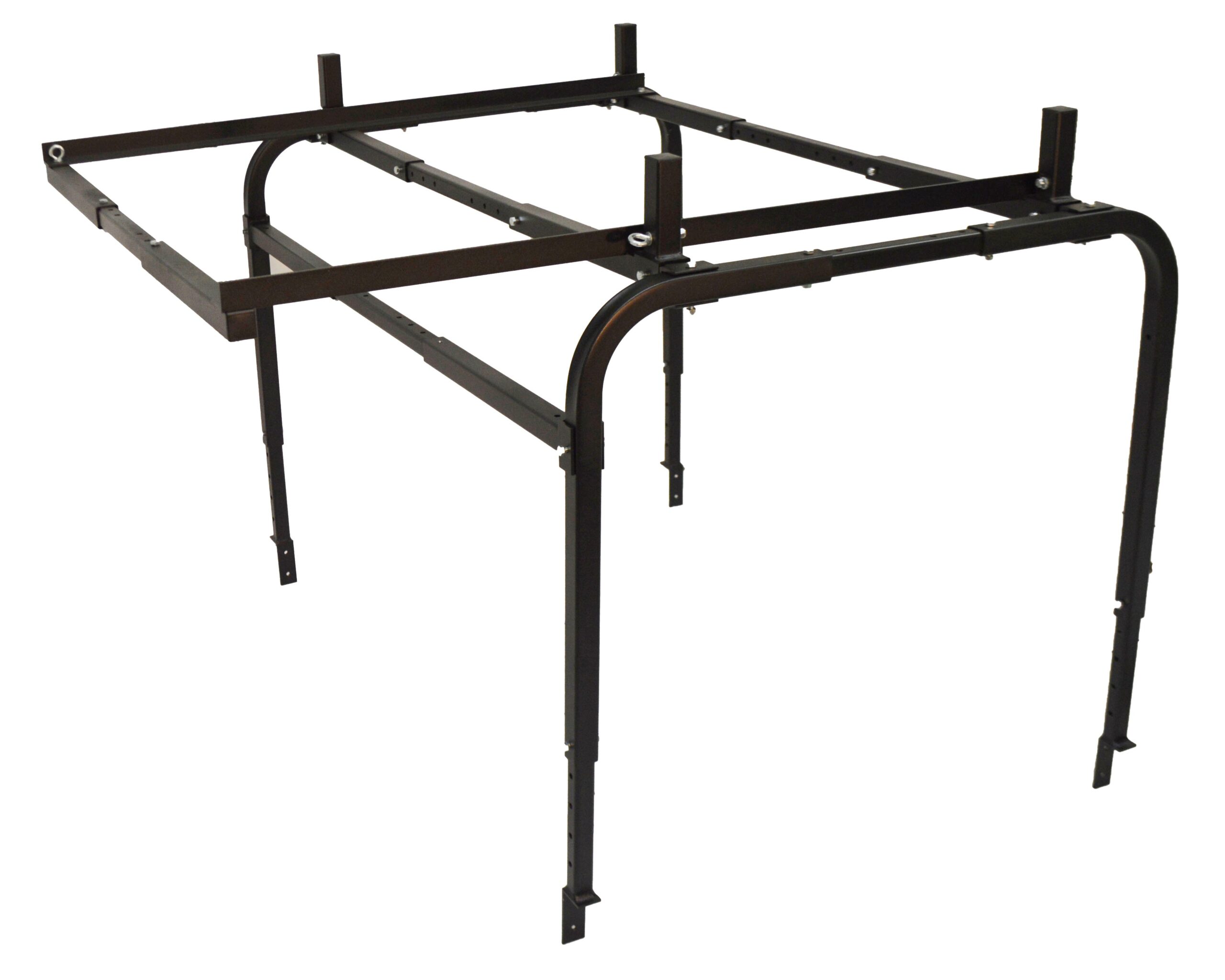

UVUR10-MF
